Pro One Design Front Torsion Sway Bar System
For 2014–2026 Ram 2500 4WD & 2013–2026 Ram 3500 4WD
Description
The Pro One Design Front Torsion Sway Bar System Was Engineered To Improve Front-End Ride Quality, Suspension Travel, And Overall Vehicle Stability. Built Around Heavy-Duty Components And Precision Engineering, This System Provides Improved Handling Characteristics While Maintaining Excellent Ride Quality And Suspension Performance.
The Factory Front Sway Bar Plays An Important Role In Controlling Body Roll, But Its High Spring Rate Also Transfers Suspension Movement From One Side Of The Vehicle To The Other. When One Front Tire Encounters A Bump, Expansion Joint, Or Uneven Terrain, A Significant Portion Of That Impact Is Transmitted Through The Factory Sway Bar Into The Opposite Side Of The Suspension And Ultimately Into The Chassis. This Can Create A Harsher Ride, Increased Chassis Vibration, And Reduced Small-Bump Compliance.
The Pro One Design Torsion Sway Bar Is Engineered With A Carefully Tuned Torsional Spring Rate That Allows Greater Independent Wheel Movement During Normal Driving And Off-Road Suspension Cycling. Rather Than Immediately Transferring Every Suspension Input Across The Front Axle, The Torsion Bar Allows Each Side Of The Suspension To React More Naturally To Uneven Terrain, Resulting In Improved Ride Comfort, Better Tire Contact, And Increased Suspension Performance.
As Cornering Loads Increase, The Torsion Sway Bar Progressively Builds Resistance To Control Body Roll And Maintain Vehicle Stability. This Balanced Design Delivers A Smooth, Controlled Ride During Everyday Driving While Providing The Confidence And Handling Needed For Heavy Towing, High-Speed Off-Road Driving, And Emergency Maneuvers.
At The Heart Of The System Is A High-Strength 4340 Chromoly Torsion Sway Bar That Is Precision Heat Treated To Deliver Exceptional Strength, Durability, And Long-Term Performance Under The Most Demanding Conditions. Each Sway Bar Is Finished With A Durable E-Coat For Superior Corrosion Protection Against Moisture, Salt, Road Debris, And Harsh Off-Road Environments.

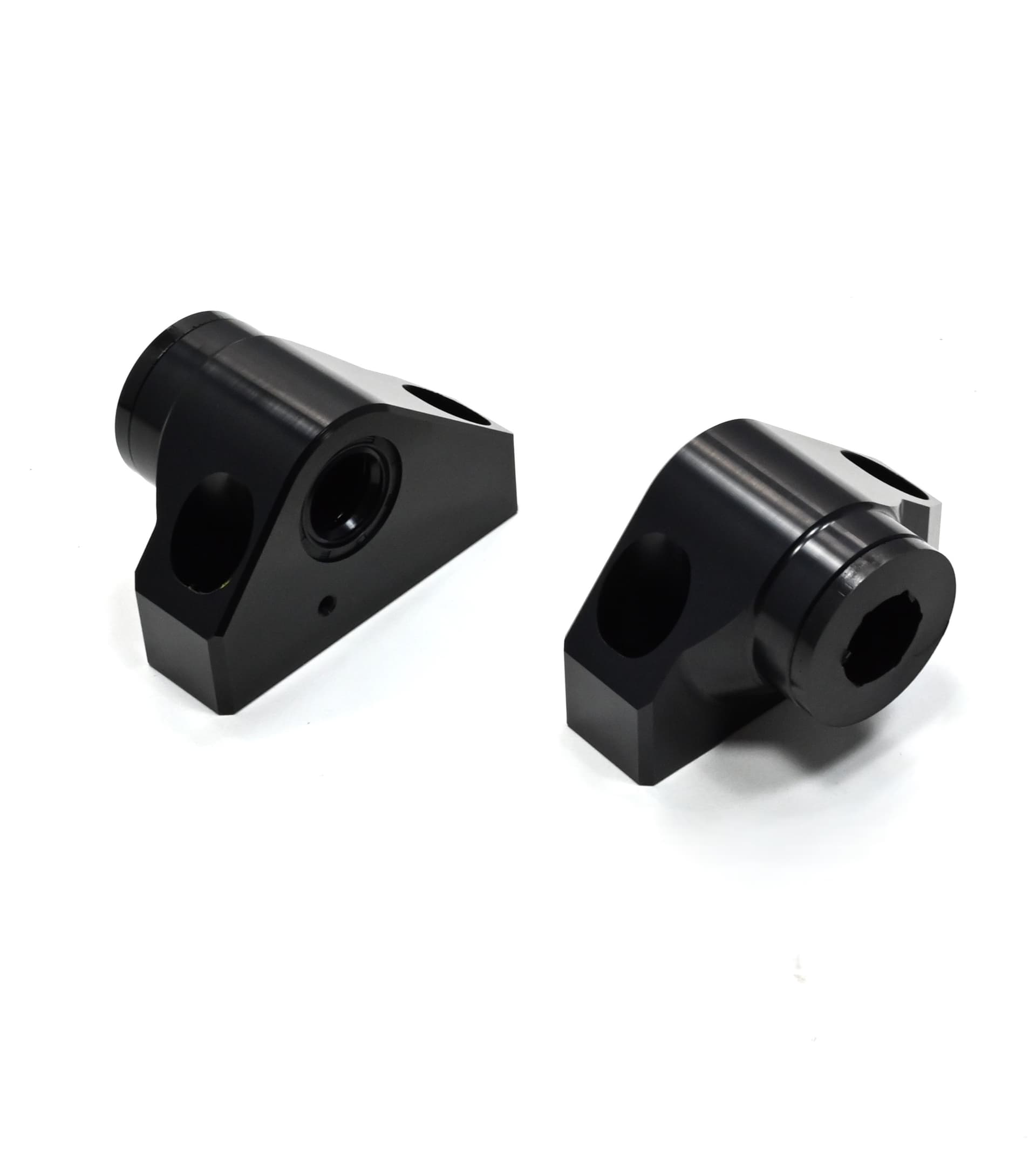

The Sway Bar Rotates In Precision CNC Machined 6061-T6 Billet Aluminum Greaseable Mounts Equipped With High-Quality Polyurethane Bushings. Each Mount Incorporates Internal Grease Seals That Keep Grease In While Preventing Dirt, Water, And Other Contaminants From Entering The Bearing Surface, Helping Extend Component Life And Maintain Smooth, Quiet Operation. This Combination Minimizes Deflection, Reduces Friction, Eliminates Premature Wear, And Provides Long-Term Reliability.
To Complete The System, Pro One Design Includes Heavy-Duty Engineered Specifically For Lifted Ram HD Trucks. Each End Link Features A With Internal Grease Grooves That Allows , Providing Smooth Suspension Movement While Reducing Deflection And Binding. A Precision-Machined Rides On An Internal Bronze Bearing Surface, Reducing Friction And Wear While Delivering Outstanding Strength, Corrosion Resistance, And Long-Term Durability Under Extreme Suspension Movement.
